Rincon Power expands the HVBD product line with the new HVBD8 battery disconnect switch
Overview

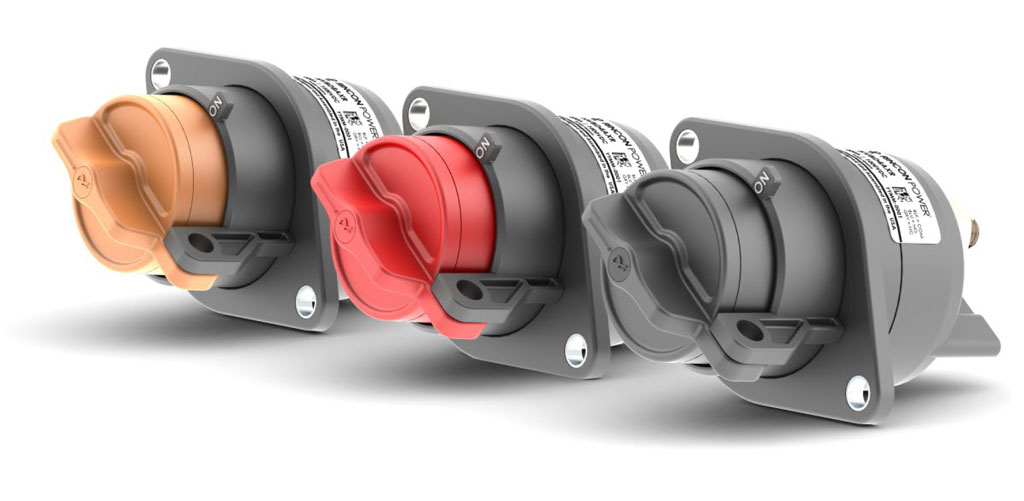

Rincon Power has expanded their HVBD manual battery disconnect switch product line with the introduction of a higher-rated variant, the HVBD8 series.
The new HVBD8 delivers 800A of continuous current carry and can handle up to 1500Vdc, making it an ideal solution for HV electrification applications. This significant advancement in power handling capability comes in the same compact and reliable package that customers have come to expect from the Rincon HVBD series.
The Rincon HVBD series is proudly designed and assembled at Rincon’s global headquarters in Carpinteria, California. At this facility, Rincon can coordinate custom testing in their HV Lab for specific application testing.
Features and Advantages
- Robust Metal-Ceramic Hermetic Seal
- Industry Leading Dielectric Withstand Voltage – 5,375VDC, 1 minute
- High Temperature Performance – -55°C to 85°C
- Ultra-Low Contact Resistance over Life – Typ:0.06mΩ, Max: 0.120 mΩ
- Ready for Harsh Environments – Ingress Protection (Sealed Contacts) Exceeds IP69
- Designed for OSHA compliant Lockout/Tagout (LOTO)
- Optional Integrated Auxiliary Contacts
- CE compliant
- Designed and Assembled in the USA
Applications
- HV Battery Systems
- DC Charging Infrastructure
- Off Road Vehicles
- Electric Vehicles
- Marine
- Commercial Truck
- Construction & Mining
