Overview

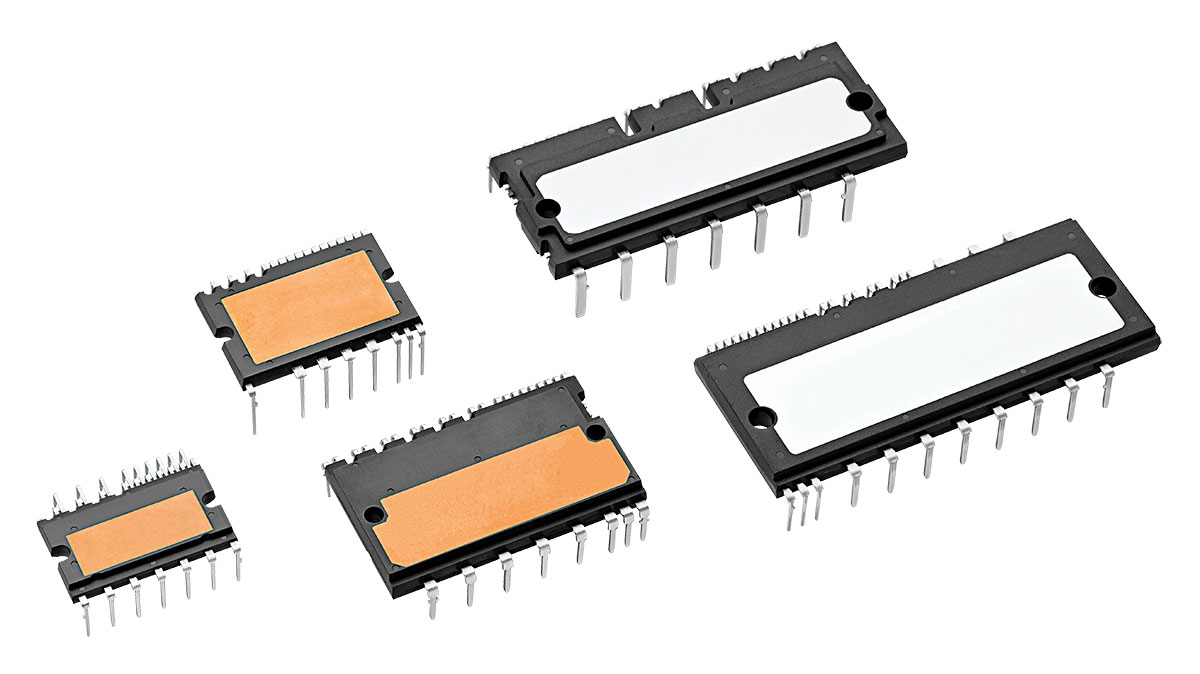

Powerex Version 6 DIPIPM™ simplifies the design of low power inverters for residential, commercial, and industrial applications. Standard features such as analog temperature output and built-in bootstrap diodes reduce the need for peripheral components, thus reducing overall system costs. By using the latest low loss IGBT (7th Generation CSTBT™), the product line-up has been expanded to suit a wider range of applications. The design effort is minimized, as Version 6 DIPIPM employs the same standard external packaging previously introduced for Versions 4 and 5. New to the DIPIPM line-up is our SLIMDIP line. SLIMDIP is an ultra-small, compact intelligent power module with a transfer mold package suitable for larger mass production. As with all Powerex DIPIPMs, the power chips, drive, and protection circuits are integrated in the SLIMDIPs, providing a simple solution for AC 100-200V class low-power motor inverter control.

Powerex Version 6 DIPIPM
Click to view larger product image
Features and Advantages
  • Integrates the latest power chip for matching various applications
  • Wide current line-up (5-50A at 600V and 5-50A at 1200V) with compact package size
  • Built-in bootstrap diodes and current limiting resistors
  • High-accuracy analog temperature output
  • Standardized packages simplify design cycles
Applications
  • Servo / motion controls
  • HVAC
  • Home appliances
  • Pumps
  • Low-capacity industrial inverter
